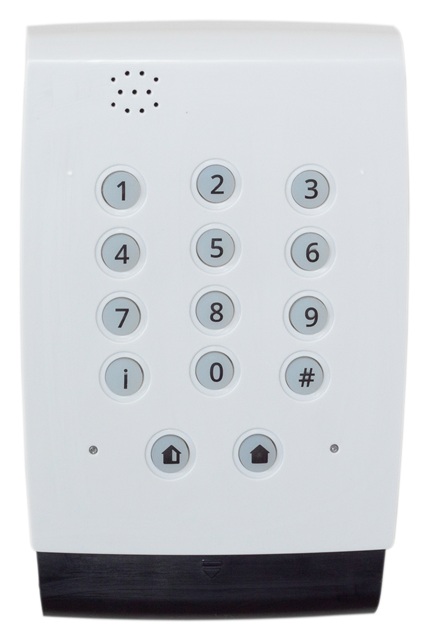

К14-LED Keyboard

The K14-LED keyboard is compatible with all products of the Nord-GSM line.

It is connected to the device using the terminals of the “Keyboard” group. (GND-GND, 12V-12v, IN-OUT, OUT-IN).

Important! When using the keyboard in conjunction with the panels "Nord GSM" hardware version 5.1, it is necessary to install on the device board a wire jumper between the “12V” terminal of the “Keyboard” group and the “PWR” terminal of the “Loops” group.

  • Volume control
    The keyboard provides volume control built-in speaker. Five-level adjustment - from the "off" to the volume levels from the first to the fourth. Use combination of keys "#" and "9” for volume control.
  • Voice indication
    The keyboard has a built-in speaker providing voice indication and beeper indication.
    The voice indicates:
    o Arming and disarming partitions and the object in general
    o Refusals to arm (including due to debit debts)
    o Warnings about debit debts when arming
    o The status of a partition or an object in general (when pressing the i key).
  • Indication by LEDs
    Red LED - arming, green - disarming.
  • Button backlight

Keyboard operation description

Indication of error:

Simultaneous flashing red and green LED.

Indication of loss of communication with the control panel:

Alternately turning on the red and green LEDs and the speaker beeping for three seconds.

Getting object status:

Press i button

  • if the device has partitions configured and all partitions are armed, the keyboard will announce: "The object is armed"
  • if the device has partitions configured and all partitions are disarmed, the keyboard will announce: "The object is disarmed"
  • if partitions are configured on the device and some of them are armed, and some are disarmed, the keypad displays an error indication
  • if partitions are not configured on the device, the keyboard displays an error indication.

Getting partition status:

Dial the partition number and press the i button

  • if the partition exists, the keyboard announces its state
  • if the partition does not exist, the keyboard displays an error indication.

Arming

Press   and dial user code

  • if the code is correct, then the object (partition) will be armed, the keypad will confirm the action with voice.
  • if the code is incorrect or the user who owns this code is related to more than one partition, then the device indicates an error
  • if arming is not possible, the keypad will display an error indication, and then announce the reason of the refusal to arm

Arming a specific partition

Press  , and dial partition number, then # and user code.

  • If the code is correct, the partition will be armed
  • When you re-arm a section, the keyboard plays a voice indication of its status

Disarming

Dial user code.

  • if the code is correct, the object (partition) will be disarmed.
  • if the code is incorrect or the user who owns this code is related to more than one partition, then the device indicates an error

Disarming a specific partition

Dial the partition number, press #, dial the user code

  • If the code is correct, the partition will be disarmed
  • When you re-disarm a partition, the keyboard plays a voice indication of its status

Panic button

To activate, press and hold for 3 seconds the buttons  + .

  • if the device does not allow activation of the alarm button, the keyboard displays an error indication.
